CLEANS LogoIntroducing CLEANS™ – Designed for Next Level Fleet Deep Cleaning

Our CLEANS™ (Contact Limitation & Eradication of Airborne Noxious Systems) suite of solutions focuses on disinfection and sanitization of three distinct areas onboard your fleet vehicles including:

With options ranging from electrostatic fogging and HVAC purification to UV lighting and passenger and driver partitions, you can choose from the same industry-leading brands used by airlines, major hospitality chains, and the food service industry. CLEANS™ layers of protection are specifically designed to help you enhance air quality, sanitize surfaces, and create barriers to separate and protect drivers and passengers. To download the full CLEANS™️ product offering click here.

CLEANS™ PACKAGES & OPTIONS

Contact Limitation & Eradication of Airborne Noxious Systems

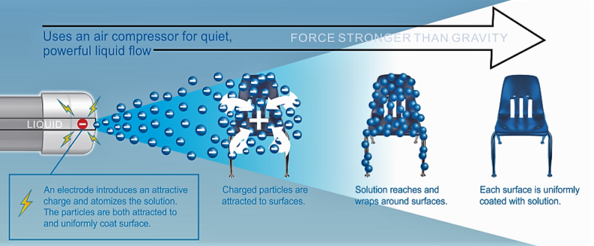

Interior Sanitization / Disinfection
  • Electrically Charged Solution Allowing “Wraparound” Distribution on all Surfaces
  • Services Conducted by ABC on Site or at your Location

Priced Per Coach

RED ULV Fogger (U120)

  • Motor Output: 38,000 rpm
  • Droplet Size: 15-25 microns
  • Solution Tank: 1.32 gallons
  • Fogging Distance: 39 feet
  • Shoulder Strap: 2” wide
  • Electric Motor: 110V, 700W
  • Flow Rate: 0-13.53 oz/min
  • Hose Length: 20”
  • Weight: 9.7 lbs (with hose)
  • Dimensions: 14”x16”x11” + hose



BLUE ULV FOGGER (U110)

  • Motor Output: 38,000 rpm
  • Droplet Size: 15-25 microns
  • Solution Tank: 1.32 gallons
  • Fogging Distance: 39 feet
  • Shoulder Strap: 2” wide
  • Electric Motor: 110V, 700W
  • Flow Rate: 0-5.07 oz/min
  • Hose Length: n/a
  • Weight: 6.8 lbs
  • Dimensions: 14”x13”x17”



Part Number Price
ABC-14677 (Sprayer, ULV – U120 Red) $650.00
ABC-14676 (Sprayer, ULV – U110 Blue) $650.00
  • Size 6” x 1.6”
  • Dotted Lines Denote Actual Shape of Decal

Available Now



Part Number Price
ABC #14523 (Decal, CLEANS Sanitized) $0.10





  • Size 5” x 7”
  • Dotted Lines Denote Actual Shape of Decal

Available Now



Part Number Price
ABC #14522 (CLEANS Decal) $0.25
HVAC Filter and UV Light Purification Systems
  • 100% synthetic media is highly effective at removing 0.3 – 10.0 micron particles from the air stream
  • Removes airborne pathogens, mold, and pollen from the air stream
  • Resists moisture and microbial growth
  • High dust loading for maximum service life while reducing airflow resistance
  • Withstands prolonged exposure to high temperature, high humidity, and consistent UV exposure
  • Can be Installed in New and Pre-Owned Coaches











Available: Now (only for CX & TX Models)

Part Number
PN 11384473ABC (Filter, Evaporator – MERV 15)

4 needed per coach

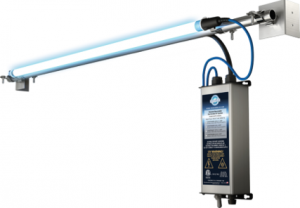

  • Eliminates 90% of Microbial Contaminants After 10 Minutes of Exposure and 99% After 1 Hour
  • Reduces Maintenance of HVAC System Components
  • UV Light Installed Within the HVAC System
  • Can Be Installed in New and Pre-Owned Coaches



Available: 6-8 Weeks Delivery. Back orders are being taken and prioritized.

Cost: $2,399 Installed / $1631 Parts Only (before taxes and fees)

Part Number Price
PN TUVC-BUS-246TF (Light, UV) $815.30 each (2 per coach needed)

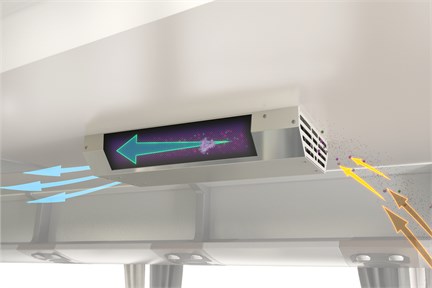

  • Installed directly in the passenger compartment
  • Easy assembly/mounting
  • Modular and completely autonomous operation
  • Continuous operation while driving
  • No distraction on the efficiency of an existing air conditioning system
  • Long-lasting almost maintenance-free operation: lamp replacement only after approximately 12,000 operation hours
Part Number
ABC-17264 (UV-C Unit – 24V)
ABC-17265 (UV-C Unit – 12V)
ABC-17266 (Replacement Bulb, UV-C LED)

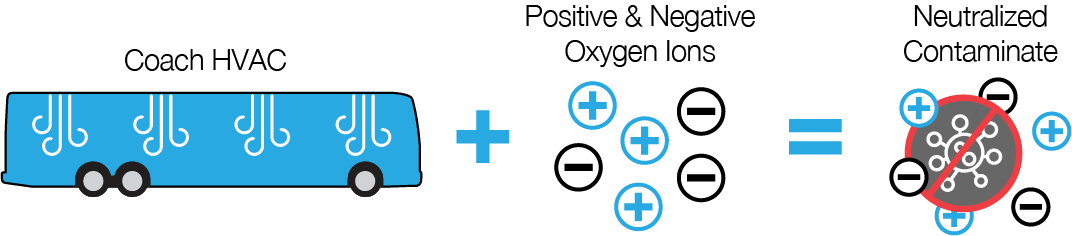

  • Bipolar Ionization creates positive and negative oxygen ions to neutralize particulate matter
  • Chemical free and can be used in the presence of passengers and staff
  • Clinically proven effective at neutralizing particulate matter, bacteria, virus cells, odorous gases, aerosols, and VOCs
  • Clinically tested and proven to neutralize MS2 Bacteriophage, a common surrogate for SARS-CoV-2 the virus causing COVID-19*
  • Integrated in the HVAC system for superior distribution throughout the coach with no equipment present in the passenger cabin
  • Can be run when the coach is in operation, eliminating any down-time or additional interruption of service



Part Number Description
ABC-14873 Kit, Bipolar Ionization – Van Hool C2000
ABC-14883 Kit, Bipolar Ionization – Van Hool T2100
ABC-15793 Kit, Bipolar Ionization – Van Hool TDX
ABC-15876 Kit, Bipolar Ionization – MCI J4500
ABC-15790 Kit, Bipolar Ionization – MCI D4500
ABC-14944 Kit, Bipolar Ionization – Gillig
ABC-14944 Kit, Bipolar Ionization – New Flyer
More Kits in Process



Warranty: 3 Years
Expected Life: >10 Years
Maintenance: Quarterly inspection and cleaning required



Type Pricing
Transit $750
Single Deck Coaches $1,300
Double Deck Coaches $3,000

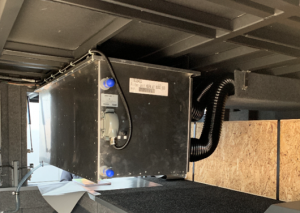

  • Captures 99.9% of Particles (bacteria, fungi, and larger viruses or virus clumps)
  • Priced Per Coach Configuration
  • Available at Factory Order
Contact Partitions & Passenger Hygiene

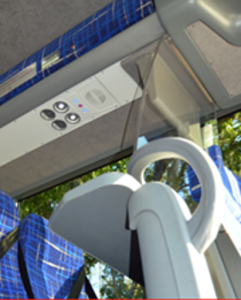

Partition for Driver’s Area

    • Permanent Barrier
    • Easy Cleaning
    • Transparent













Removable Protective Shield

    • Clear Plastic Barrier
    • Easy Disinfecting and Cleaning
    • Snaps into Position for Easy Installation and Removal
    • Available from (Patent Pending)
    • Cost: $29.95

Removable Protective Shield

    • Clear Plastic Barrier
    • Easy Disinfecting and Cleaning
    • Snaps into Position For Easy Installation and Removal
    • Each Seat Can Recline Independently
    • Available from  (Patent Pending)
    • Cost: $29.95 per 2 Seat Section

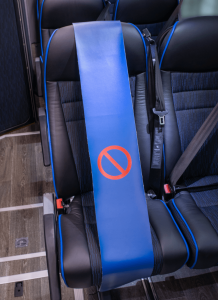

Vertical Social Distancing Bands

    • Fits Most Seat Makes and Models
    • Easy Installation and Removal
    • Vinyl Material for Easy Maintenance
    • Available from









Horizontal Social Distancing Bands

    • Fits Most Seat Makes and Models
    • Easy Installation and Removal
    • Velcro Connector
    • Vinyl Material for Easy Maintenance
    • Available from











Seatbelt Social Distancing Bands

    • Fits All Seat Makes and Models
    • Easy Installation and Removal
    • Velcro Connector
    • Vinyl Material for Easy Maintenance
    • Available from













Hand Sanitizer Stations

    • Can Be Installed at Multiple Locations Throughout Coach
    • Hand Sanitizers Available mid-June
    • Sanitizer Base Available Now
Part Number Price
PN ABC-10097 (Hand Sanitizer, Alcohol-1 Case) $35.53 each (6 bottles per case)
PN ABC-14285 (Base, Hand Sanitizer) $24.00 each (Sold individually)
Contact your ABC Account Manager or call us at 800-222-2871 option 1 for more information and available packages.

Features and equipment, packages, options and accessories shown are based upon the latest information available. ABC reserves the right to make changes at any time, without notice, to features, equipment, packages, options, price, and accessories.




    Select State (required)

    Select CLEANS Package/Option (required)



    Custom Branded CLEANS Promotional Passenger Videos

    For a limited time, any current ABC Companies customer who has or will order any component of the CLEANS Offer can have a customized CLEANS video produced for their use. Click here for more information, including how to order.



    Part Number Description Price
    ABC-17256 Fogging, UV Lighting, MERV Filter & Bipolar Ionization $250.00
    ABC-14934 Fogging, UV Lighting & MERV Filter $250.00
    ABC-14935 Fogging & UV Lighting $250.00
    ABC-14936 Fogging & MERV Filter $250.00
    ABC-14937 UV Lighting & MERV Filter $250.00
    ABC-14938 Fogging $250.00
    ABC-14942 UV Lighting $250.00
    ABC-14943 MERV Filter $250.00
    ABC-17257 Bipolar Ionization $250.00

    Did You Know (About Motorcoach Travel) –  Air Filtration Explanation Video

    Van Hool Specific Air Diagram – Click Here

    To Download CLEANS™️ product presentation click here.

    Did You Know (About Motorcoach Travel) –  Air Filtration Explanation Video

    Downloadable Floor Plans
    CX35CX45TX40TX45TDX

    These specification are based on up-to-date product information available at the time of posting June 2020. Specifications can change without prior notice.

    Additional floor plans are available upon request. For specific dimensions, please contact CustomerCare at (847) 427-7278.
